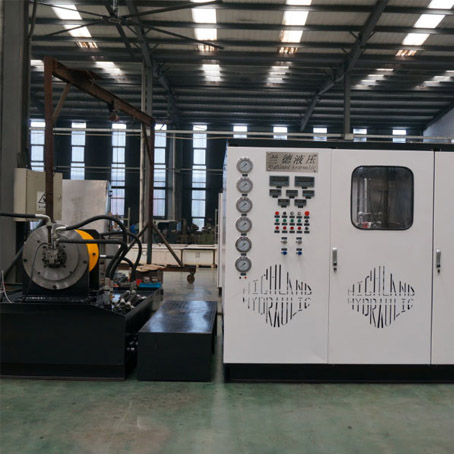

YST series hydraulic test bench schematic mainly test hydraulic pumps, test hydraulic motors, hydraulic valves, hydraulic cylinders, etc. hydraulic test bench schematic is a customized machine.According to your requirements, our engineer will make the best solution for you.
Manufacturing technical parameters of hydraulic test bench schematic:
Flow rate: 300-500L/min
Pressure: 35-40MPa
Power: 75-160KW
Power: power recovery drive, electric motor full hydraulic drive, variable frequency motor drive, diesel engine drive
Company Advantagecompany advantage
Independent R & D
HIGHLAND Hydraulic independent research and development team. Has successively obtained dozens of "invention patents" and "utility model patents", Design hydraulic technical solutions according to customer needs.
Reliable quality
Imported core raw materials Long product life and stable performance. Complete solution for hydrostatic transmission system. Manufacturers and service providers of hydraulic systems and components.

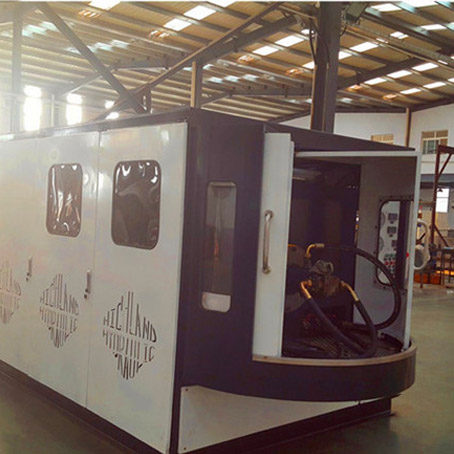

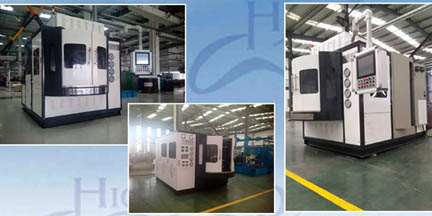

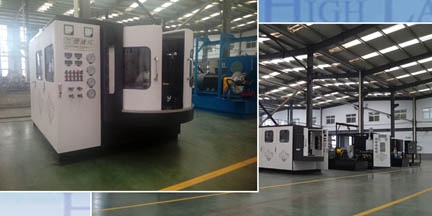

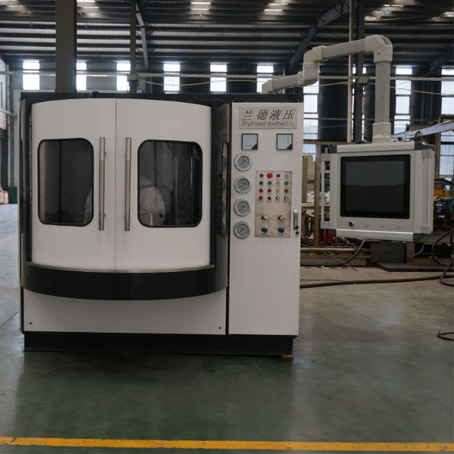

Hydraulic test bench
According to customer testing requirements, develop technical solutions suitable for customers.The hydraulic test bench can be used for testing and repairing hydraulic pumps, hydraulic motors, hydraulic cylinders, hydraulic valves, etc.
Fast delivery

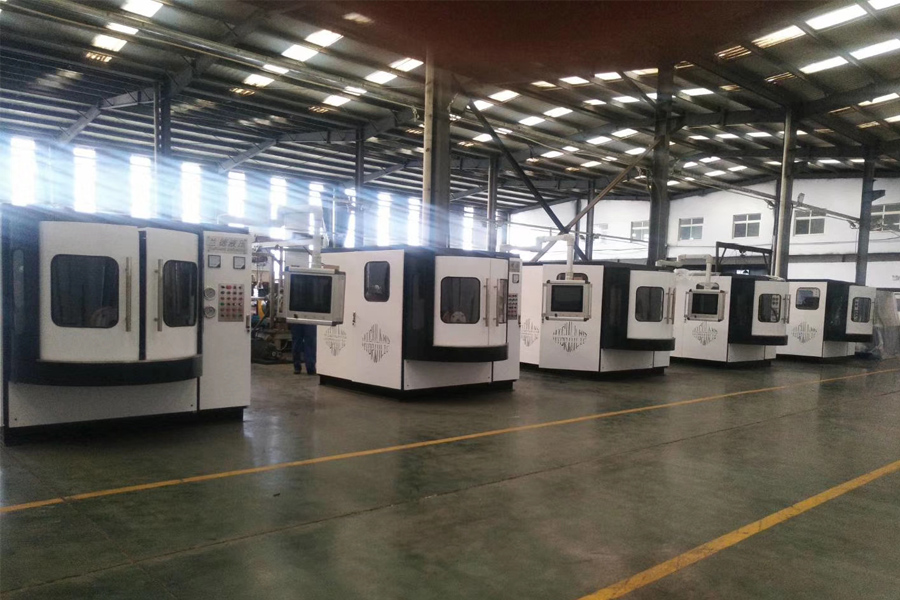

More than 10,000 square meters workshop. 20 years of hydraulic pump manufacturer,CE certification. Good production capacity, greatly shortening the production cycle Ensure fast delivery Video technical support
YST series hydraulic pump test mainly test hydraulic pumps, test hydraulic motors, hydraulic valves, hydraulic cylinders, etc. hydraulic pump test is a customized machine.According to your requirements, our engineer will make the best solution for you.
Model: MYHT-1-5 Pressure: 420bar Flow rate: 500L/min Temperature: 150°C Accuracy: ±1% Net weight: 10.5Kg Power supply: rechargeable lithium battery 12V Dimensions: 295*265*210mm It is suitable for on-site diagnosis and measurement of the flow, pressur
Hydraulic axial piston pump system Material: cast iron Application: construction machinery such as mixer trucks, agricultural machinery, etc. The operation is simple and the failure rate is low. Customize according to the different needs of users.
